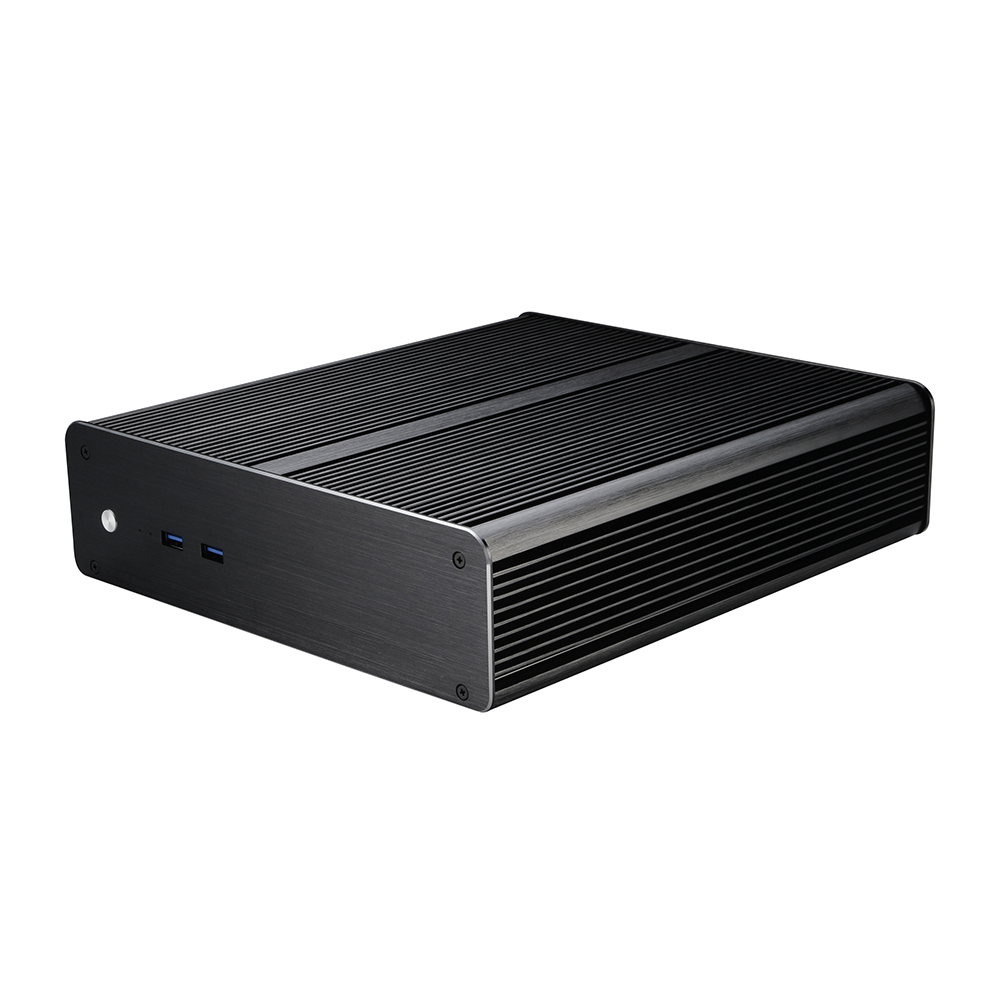

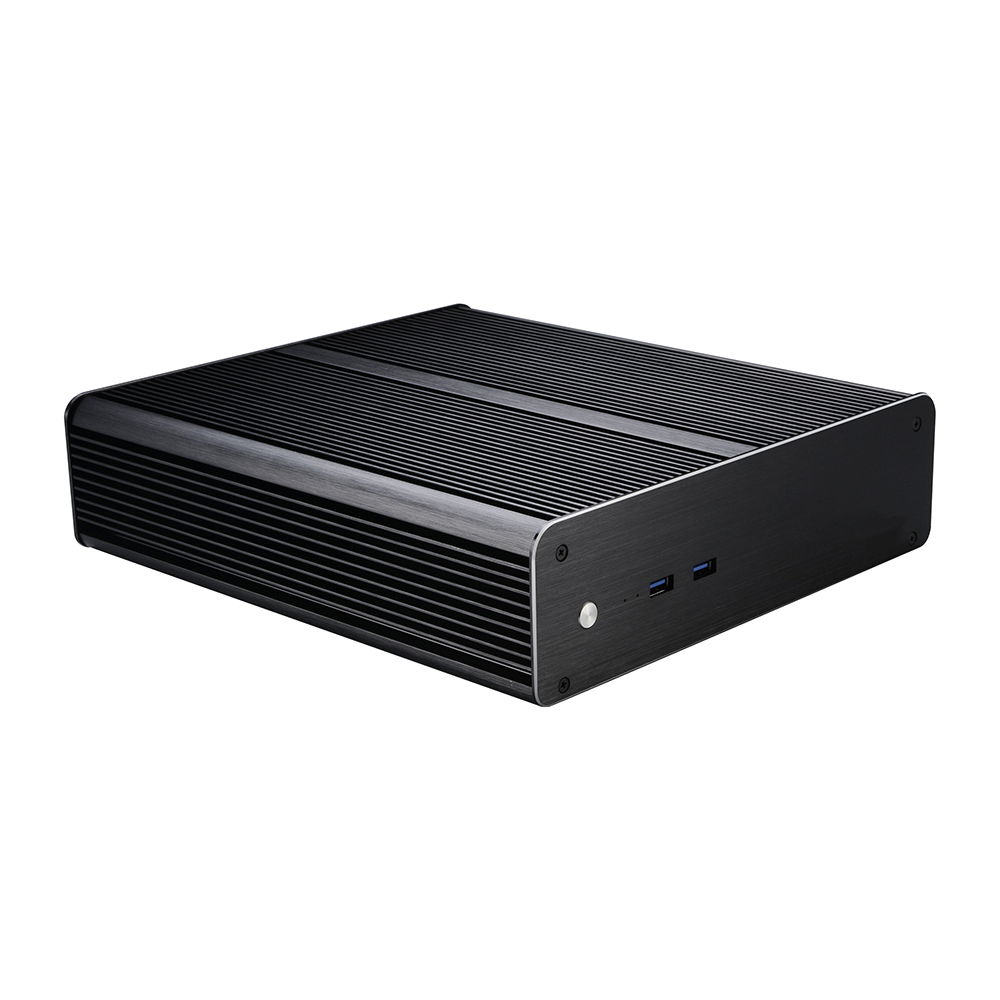

Euler M MKII
Fanless Case with Support for Industrial Mini-ITX Boards

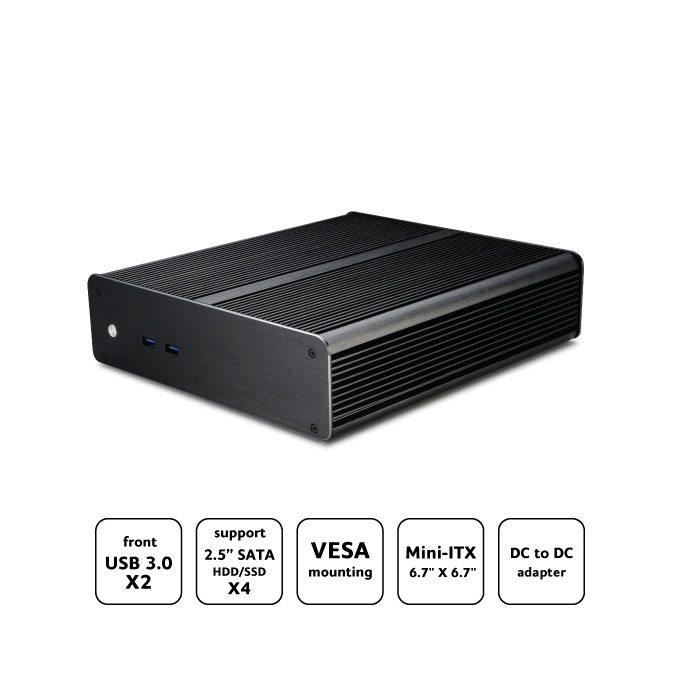

Fanless case for Mini-ITX Intel® consumer and industrial motherboards, support four 2.5" drive bay. Suitable for VESA mount monitors saves valuable desk space.
• Aluminium fanless CPU cooling design
• Stylish front panel diamond edge finish

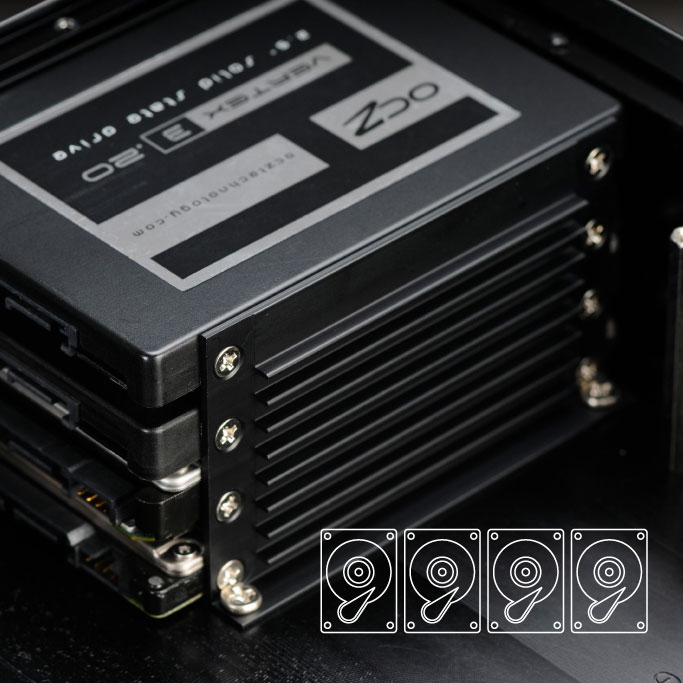

• Support four 2.5" drive bay

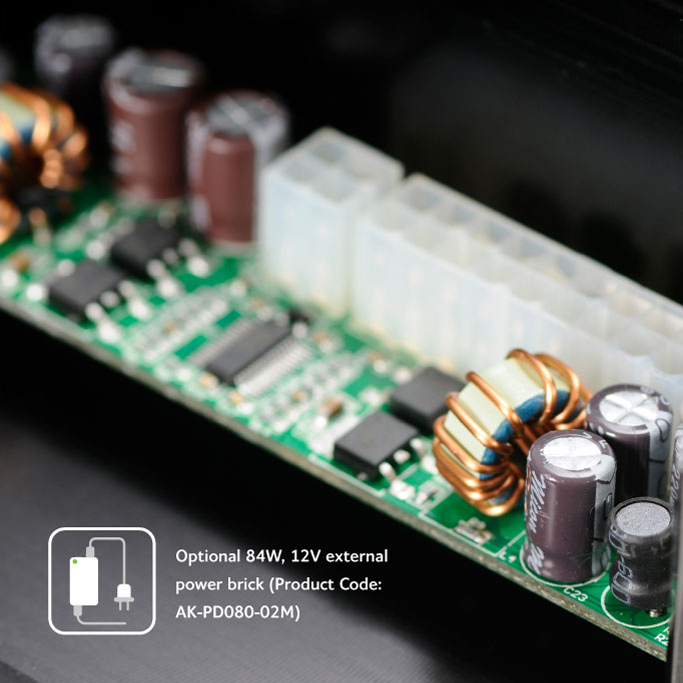

• DC to DC internal power adapter
• Optional 80W external power adapter
• Compatible motherboard

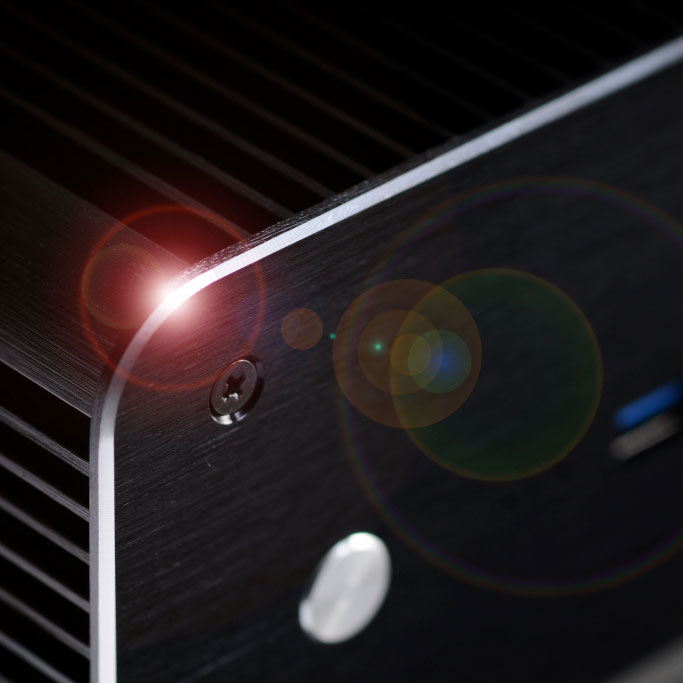

Stylish front panel diamond edge finish
Supported industrial motherboards:
- Kontron D3633-S
- Kontron D3634-S
- Asrock IMB-1220-D
- Asrock IMB-1220-L

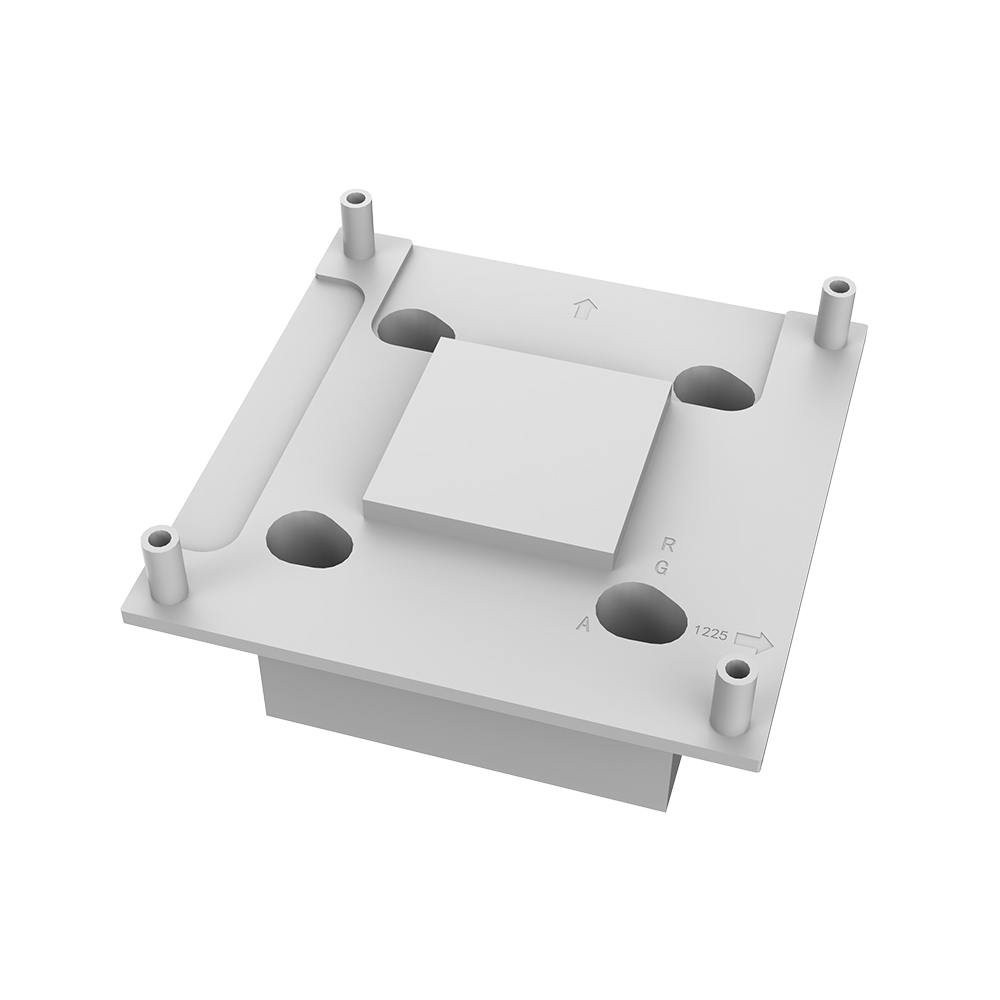

- Asrock IMB-1225 (with optional thermal module kit: A-ITX19-KT5)
See more supported motherboards in the specification

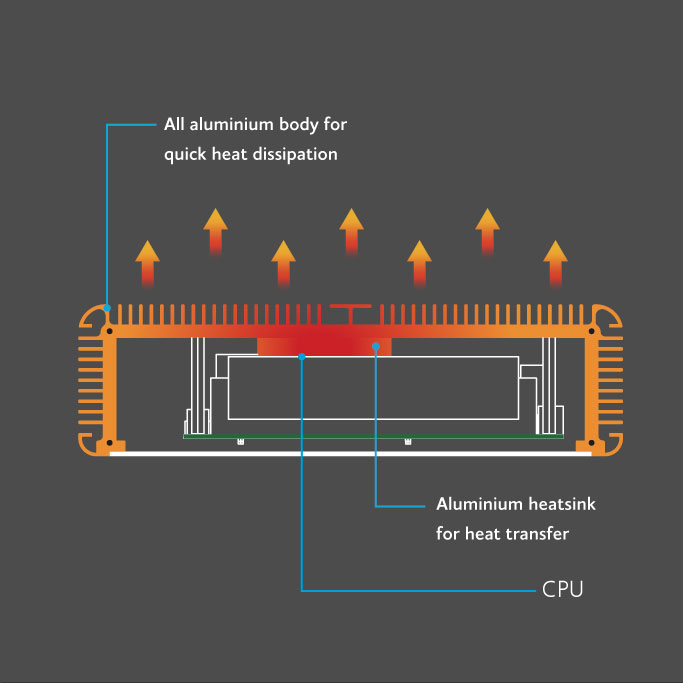

Fanless CPU cooling design
Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Aluminium with anodised black |
|---|---|
| Motherboards Types | Mini-ITX boards without DC onboard |
| Motherboard Support | See below table |
| CPU Support | 35W TDP CPU |

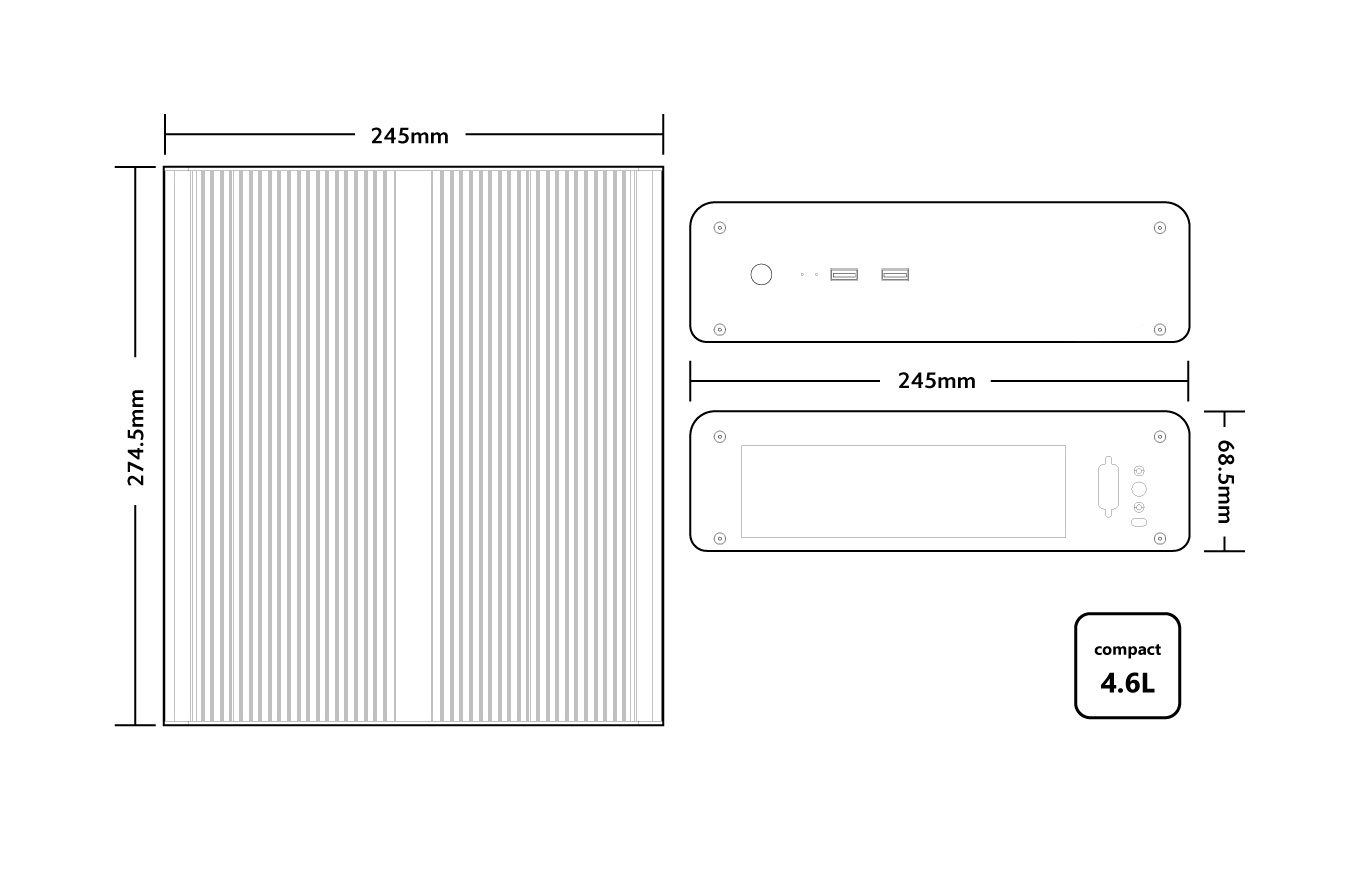

| Dimensions | 245 x 274.5 x 68.1 mm (W x D x H) |
| Internal Bays | Four for 2.5” HDD (max height 9.1 mm) |
| Security | Kensington lock |

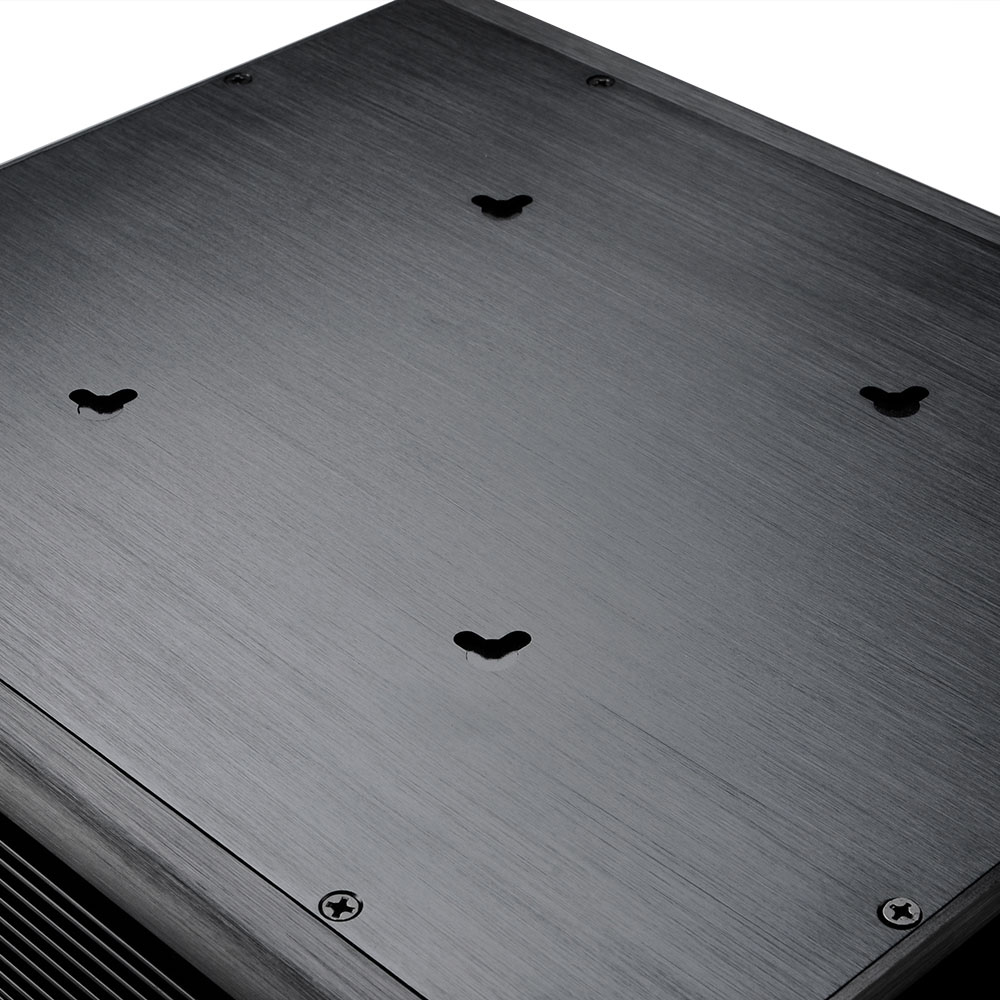

| VESA Mounting | Support |
| Serial Port Openings | 1 |
| Front Panel USB 3.0 Ports | 2 |
| Internal DC Converter | 12V to 3.3V, 5V, 5VSB and -12V |
| External AC Power Adapter | 84W, 12V (Optional Akasa model: AK-PD080-02M) |
| Power Connectors | 24pin motherboard 4pin ATX12V 4pin Molex SATA power |
| Product Code | A-ITX19-M1BV2 |
